SK-WS46-370

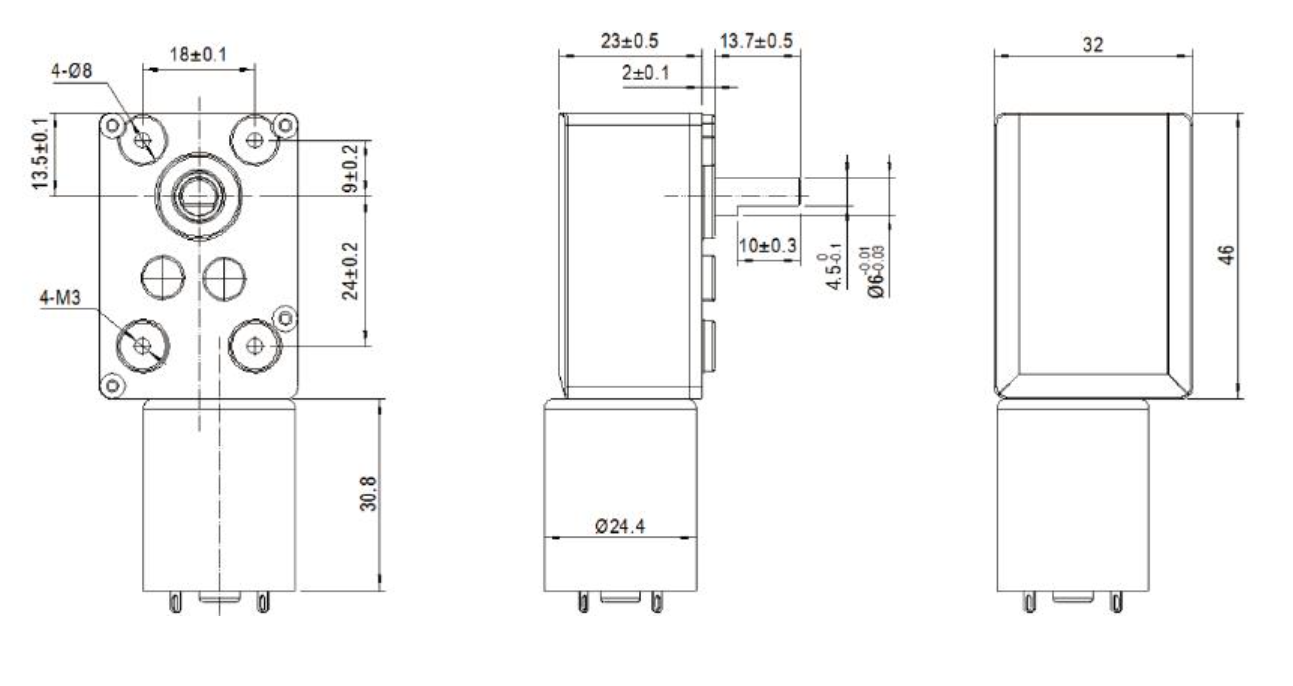

Dimension Drawing (mm):

Gear Ratio:
Number of stage		3			4
Gear Ratio		29			336
		71			410
		174			539
					603
					674
					754
					1020
					1443
					1635
Gearbox Length L(mm)		25			25
Gearbox Motor Performance:
Gearbox Motor Model	Voltage (V)	No Load		Max Efficiency Load
		Current (A)	Speed (r/min)	Current (A)	Speed (r/min)	Torque (kg.cm)
SK-WS46-370-12207	12.0	≤0.07	207	≤2.1	165.5	0.4
SK-WS46-370-1285	12.0	≤0.07	85	≤2.1	67	1.0
SK-WS46-370-1234	12.0	≤0.07	34	≤2.1	27	2.5
SK-WS46-370-1211	12.0	≤0.07	11	≤2.1	8.9	7.0
SK-WS46-370-2434	24.0	≤0.35	34	≤1.2	27.6	2.5
SK-WS46-370-248.9	24.0	≤0.35	8.9	≤1.2	7.1	8.8
SK-WS46-370-243.7	24.0	≤0.35	3.7	≤1.2	2.9	10*
Remarks:

1.The Performance in table of gear motor are for reference only. We can customize per your own unique requests.
2. Most of our customzation service are no need extra or new toolings
3.Output shaft could be customized per your drawings.
4.This gear motor could be matched with Hall sensor encoder
