SK-WS58-555

Application：Auto TV lift, Vending Machine, Money Counter, electric blinds, ice maker
Character：
1： Metal/Plastic gears
2：Voltage operating 12-24VDC
3：Low Speed & Low Noise
4：Right angel & dual shafts
Online Inquiry

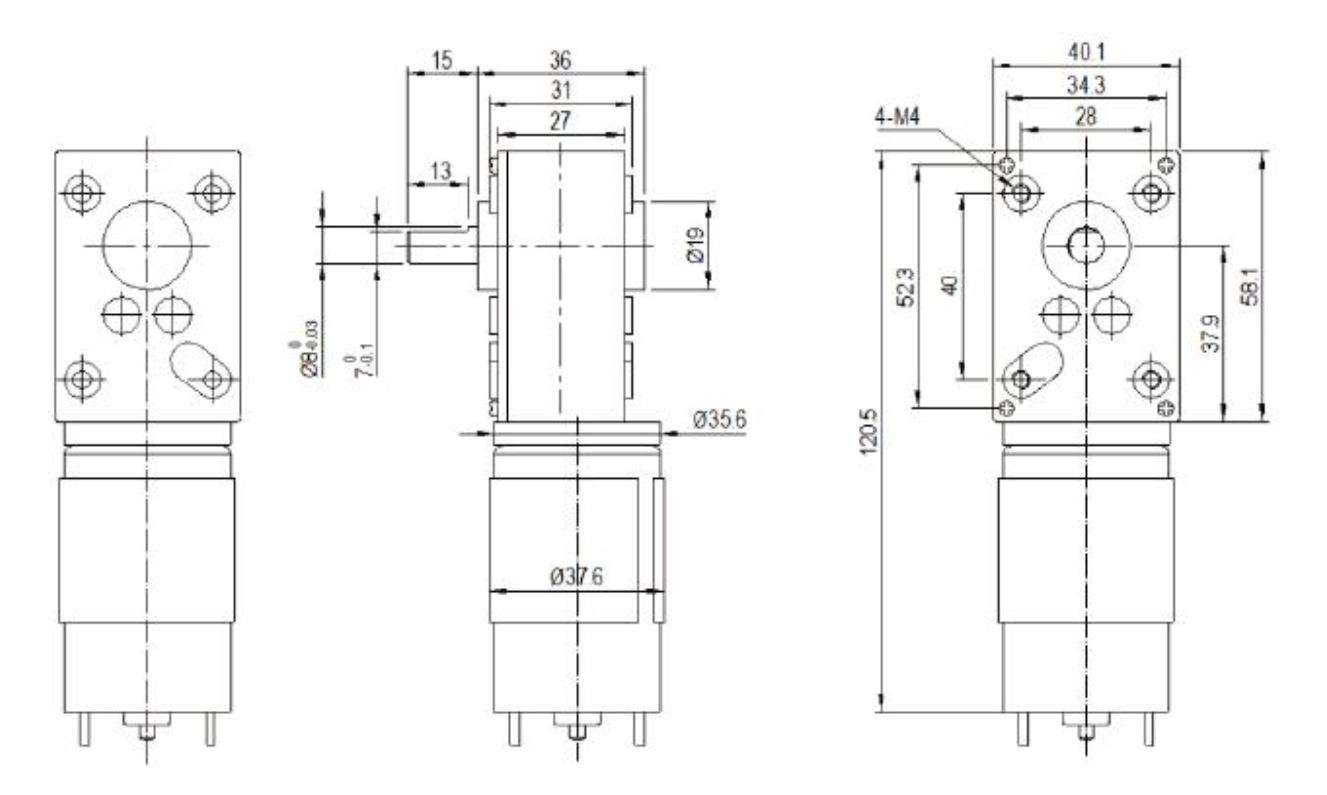

Dimension Drawing (mm):

Gear Ratio:
Number of stage		3			4
Gear Ratio		54			313
		75			405
		109			500
		161			548
		167			663
		322			708
					1327
Gearbox Length L(mm)		58			58
Gearbox Motor Performance:
Gearbox Motor Model	Voltage (V)	No Load		Max Efficiency Load
		Current (A)	Speed (r/min)	Current (A)	Speed (r/min)	Torque (kg.cm)
SK-WS58-555-1283	12.0	≤0.28	83	≤1.1	66	7.9
SK-WS58-555-128.0	12.0	≤0.28	8.0	≤1.1	6.6	71
SK-WS58-555-2440	24.0	≤0.35	40	≤1.5	32	23
SK-WS58-555-2421	24.0	≤0.35	21	≤1.5	16	40.7
SK-WS58-555-2412	24.0	≤0.35	12	≤1.5	9.5	71
SK-WS58-555-249.0	24.0	≤0.35	9.0	≤1.5	7.3	80*
SK-WS58-555-245.0	24.0	≤0.35	5.0	≤1.5	3.9	80*
Remarks:

1.The Performance in table of gear motor are for reference only. We can customize per your own unique requests.
2.Most of our Customization service are no need extra or new toolings
3.Output shaft could be customized per your drawings.
4.This gear motor could be matched with Hall sensor encoder
